Landscape Modifications


Modification Costs

*per square meter unless noted

Types of Modifications

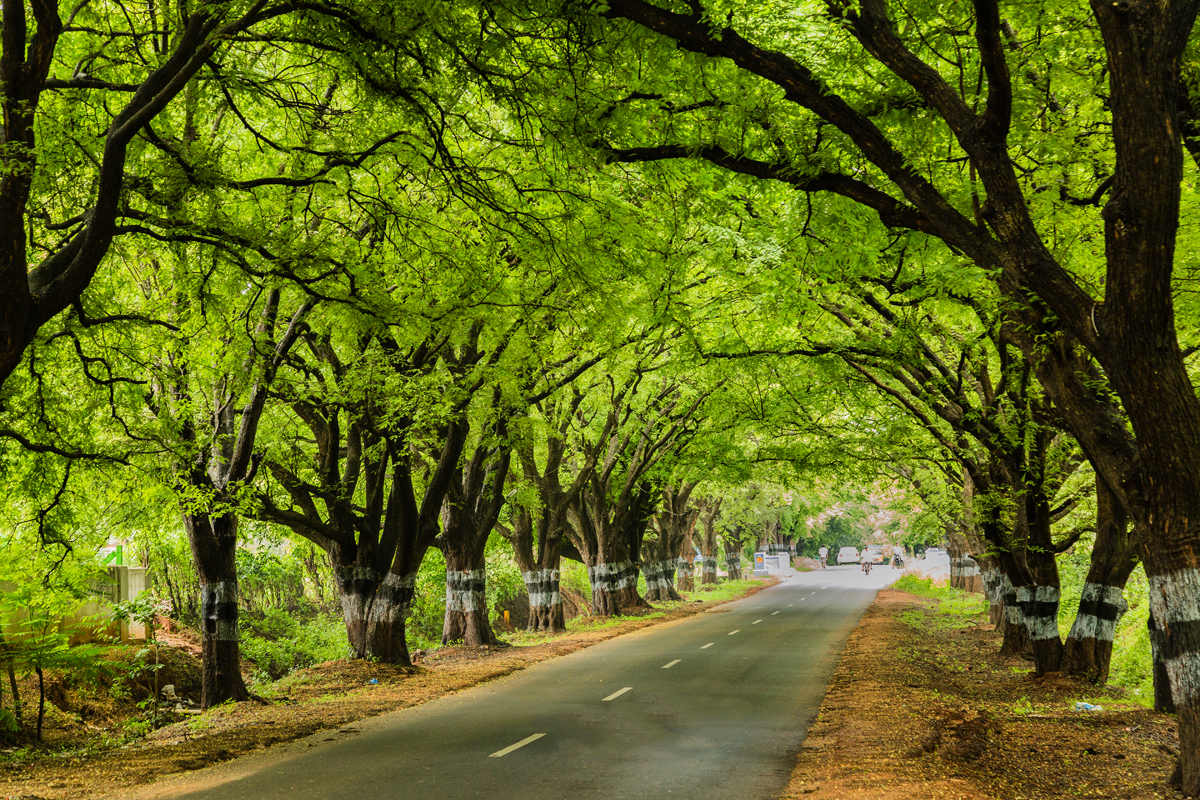

Canopy
Canopy

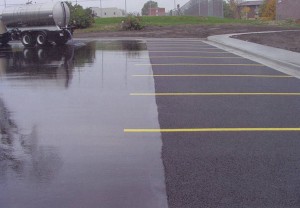

Permeable Pavement
permeable pavement

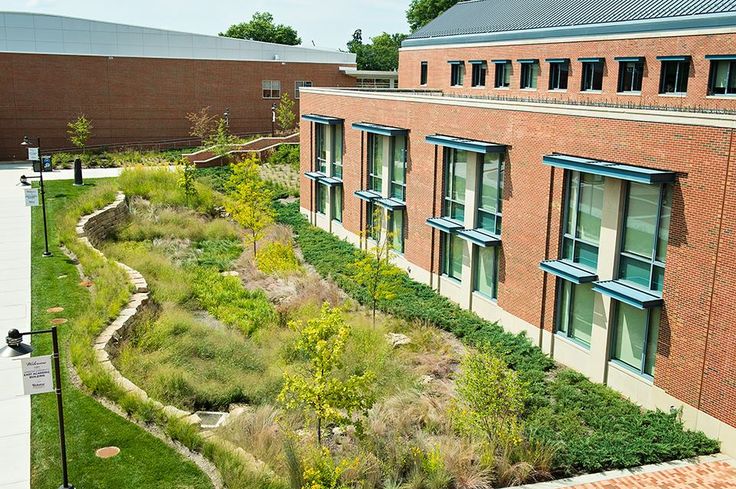

Rain Gardens
rain gardens

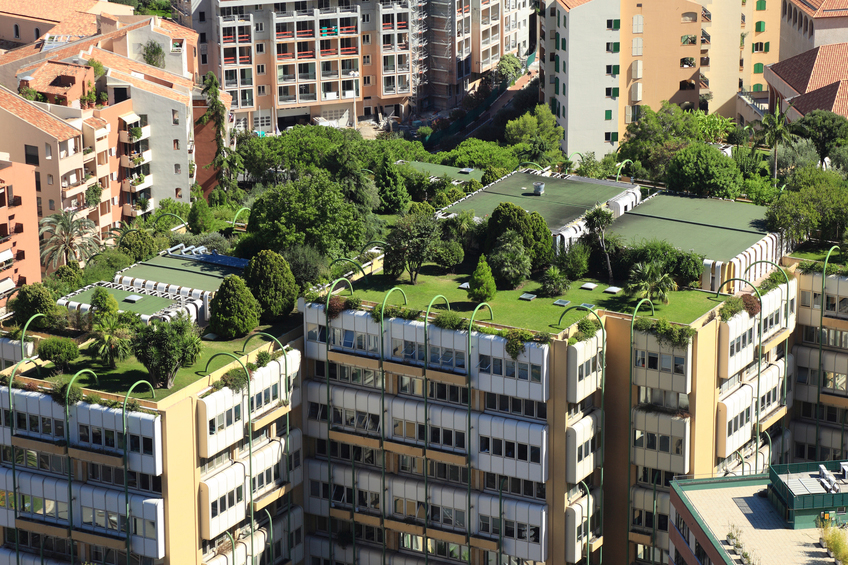

Green Roofs
green roofs

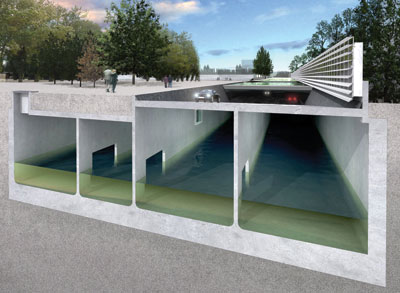

Underground Storage
underground storage

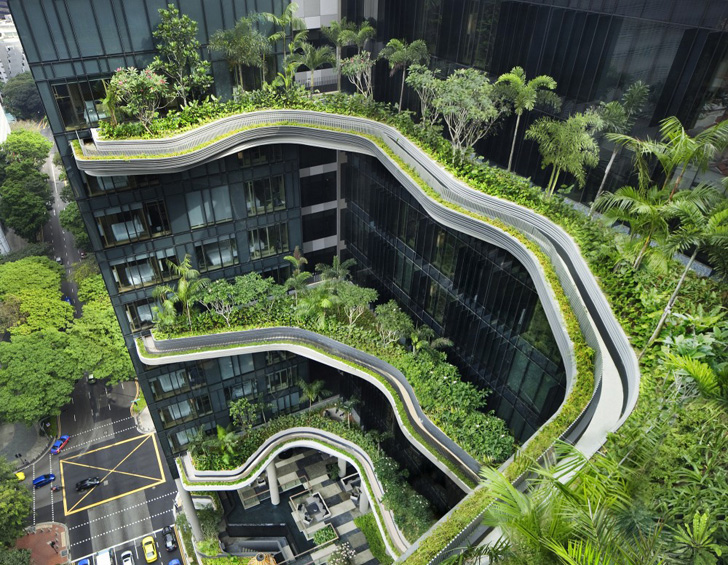

Getting Crazy
crazy green roof

Modification Breakdown

Sewer Grate ID Sewer Grate Type Runoff, as is, 1/4" storm (m3) Runoff, as is, 1" storm (m3) Runoff, as is, 2" storm (m3) Runoff, as is, 4" storm (m3) Runoff, mods, 1/4" storm (m3) Runoff, mods, 1" storm (m3) Runoff, mods, 2" storm (m3) Runoff, mods, 4" storm (m3)
1 G 147.43 754.26 1635.31 3397.41 -2.81 -4.48 1.23 -3.82
2 G 119.09 656.12 1432.47 2985.17 -2.60 -0.07 -2.80 0.63
3 G 195.26 977.10 2090.40 5768.11 -0.86 1.80 -2.48 -2.95
4 G 155.04 768.33 1774.22 3786.01 -3.14 -4.15 2.08 -5.29
5 G 158.32 922.29 2150.15 4686.17 -3.15 -3.81 6.26 -1.24
6 G 74.32 325.42 735.53 1555.75 -0.91 -0.25 1.86 -3.11
7 G 37.16 216.42 511.23 1100.87 -1.17 -1.23 1.25 7.32
8 G 41.85 185.01 425.82 907.46 0.00 0.32 -0.85 2.43
9 G 100.32 606.15 1413.47 3297.80 -1.62 -1.34 -2.49 -0.31
10 NS 77.20
11 NS 48.50
12 NS 53.01
13 NS 56.09
14 NS 38.93
15 NS 21.75
16 NS 32.12
17 NS 6.78
18 NS 18.16
19 NS 41.22
20 NS 375.2
21 NS 31.15
22 NS 82.83
23 NS 100.38
24 NS 110.49
25 NS 213.25
26 NS 24.35
27 NS 39.44
28 NS 221.28
29 NS 171.72
30 NS 195.34
31 NS 459.63
32 NS 11.32
33 NS 145.83
34 NS 105.37
35 NS 91.18
36 NS 172.06
37 NS 133.98
38 NS 275.44
39 NS 166.97
40 NS 17.86
41 NS 123.29
42 NS 129.03
43 NS 351.87
44 NS 38.47
45 NS 542.94
46 NS 202.12
47 NS 542.25
48 NS 77.75
49 NS 41.59
50 NS 798.36
51 NS 13.49
52 NS 266.92
53 NS 194.87
54 NS 12.86
55 NS 40.48
56 NS 107.71
57 NS 440.52
58 NS 98.37
59 NS 81.49
60 NS 308.56
61 NS 77.99
62 NS 710.06
63 NS 82.33
64 NS 173.33
65 NS 71.16
66 NS 238.83
67 NS 28.17
68 NS 147.84
69 NS 291.19
70 NS 207.31
71 NS 84.38
72 NS 379.87
73 NS 111.12
74 NS 24.80
75 NS 35.65
76 NS 510.38
77 NS 64.62
78 NS 169.39
79 NS 297.36
80 NS 373.82
81 NS 80.92
82 NS 30.74
83 NS 162.90
84 NS 539.97
85 NS 373.54
86 NS 28.66
87 NS 27.68
88 NS 213.36
89 NS 194.63
90 NS 345.29
91 NS 932.29
92 NS 6.27
93 NS 212.35
94 NS 97
95 NS 97.02
96 NS 33.55
97 NS 322.56
98 NS 314.38
99 NS 74.67
100 NS 133.16
101 NS 185.74
102 NS 514.99
103 NS 96.49
104 NS 86.26
105 NS 16.72
106 NS 4.74
107 NS 125.77
108 NS 398.54
Total 393.76 2,684.8 4,483.16 10,119.84
